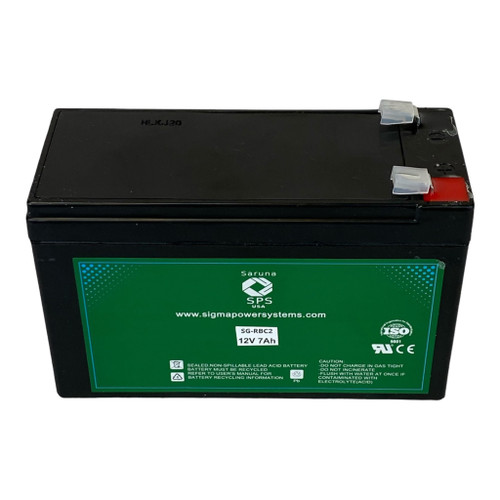

SPS Brand (SG-RBC2) APCRBC2 Compatible Battery Cartridge

SPS Brand (SG-RBC2) APCRBC2 Compatible Battery Cartridge

(No reviews yet) Write a Review

SKU:
SGRBC2_1_AL000
UPC:
681827853668
Condition:
New
Availability:
Usually Ships in 24 hours
Weight:
5.30 LBS
Shipping:
Free Shipping
Volt:
12 V
Capacity:
7 Ah
LENGTH:
5.94 IN
WIDTH:
2.56 IN
HEIGHT:
3.74 IN
Weight:
5.3 LBS PER UNIT
TERMINAL:
T2
MSRP: $30.00
$17.75
(You save $12.25 )

SPS BRAND (SG-APCRBC2) APC RBC2 Compatible Battery Cartridge – APC BackUPS, BK, BE, BP, SUVS Series

Key Features

  • EXACT REPLACEMENT: Direct plug-and-play replacement for APC RBC2 battery cartridge. Compatible with a wide range of APC UPS models, including BE500R, BK200, BK400, BK500, BP500U, SUVS420, and many more1.
  • PREMIUM QUALITY: Built with a brand new 12V 7Ah sealed lead acid (SLA) battery, manufactured in ISO-certified facilities for consistent reliability and long service life
  • EASY INSTALLATION: Arrives fully charged and assembled-no wiring or assembly required. Simply swap out your old cartridge for immediate backup protection.
  • LONG LIFE: Designed for 3–5 years of dependable service at 77°F (25°C). AGM (Absorbent Glass Mat) technology provides maintenance-free, spill-proof design.
  • FRESH & FACTORY-SEALED: Each RBC cartridge is freshly built with voltage-matched batteries, ensuring maximum runtime and performance

Product Description

Restore your APC UPS to peak performance with this RBC2-compatible battery cartridge. This high-quality replacement features a 12V 7Ah sealed lead acid battery with T2 terminal for secure, easy installation. Engineered for compatibility with a wide range of APC UPS models, this cartridge is shipped fully charged and ready for immediate use-no assembly or special tools required.

The SG-RBC2 is built using premium components in ISO-certified factories and is designed for long life, reliability, and safety. The maintenance-free, valve-regulated design ensures safe operation in any position, while AGM technology provides superior performance in demanding backup power applications.

Compatible Models:
BE500R, BK200, BK280, BK400, BK420, BK500, BP350UC, BP500U, BP500UC, SUVS420, BK350, BK350CS, BE500U, BK250B, BK280B, BK300, BK400B, BK420C, BK420S, BK500MC, BP500CLR, PCPER, SU420NET, SC420, BR500I, SU420INET, SC420I, BK300MI, BK350EI, BK500MI, BK500EI, BH500NET, BK500BLK, BE550-IT, BE500R-AS, BR500, BP420SI, BK500CI, BE550-FR, BE500TW, BE600-BR, BK325I, BE525-RS, BK500-UK, BE550-UK, BE550-CP, BE600-LM, BE550-GR, BK350-GR, BE500U-CN, BK500-GR, BE550-AZ, BE500R-CN, BP280SI, BE550-KR, BK500-RS, BK500-CH, BP500I, BE525-AS, BK475I, BE550-RS, BE500Y-IN, BK500-FR, SC420ICH, SC620ICH, BK200B, BP500IN, BK650-CH, BE400-LM, BE500-IN, BE550-LM, BE550-SP, BE600D-BR, BE700-LM, BH500INET, BK300C, BK300I, BK300MICM, BK300MICW, BK300X116, BK325-RS, BK350-FR, BK350-IT, BK350-RS, BK350-UK, BK350EIX545, BK350J, BK475-RS, BK500-IT, BK500I, BK500IACH, BK500JS, BK500MICM, BK500MICW, BK500TW, BP280, BP280C, BP280IPNP, BP280PNP, BP280S, BP280SX116, BP300JPNP, BP350U, BP420, BP420C, BP420IPNP, BP420PNP, BP420S, BP500IACH, BX600CI-IN, SP500DR, SUVS420I, and more.

Technical Specifications

Specification

Details

Battery Type

Sealed Lead Acid (SLA), AGM

Nominal Voltage

12V

Capacity

7.0Ah (at 20-hr rate to 1.75V/cell)

Terminal Type

T2

Dimensions (L x W x H)

5.94" x 2.96" x 3.96" (151 x 65 x 100 mm)

Weight

4.5 lbs (2.05 kg)

Design Life

3–5 years at 77°F (25°C)

Max Charge Current

2.10A

Max Discharge Current

70A (5 seconds)

Operating Temp Range

Discharge: -4°F to 140°F (-20°C to 60°C)
Charge: 32°F to 122°F (0°C to 50°C)

Float Charge Voltage

13.6–13.8V at 77°F (25°C)

Case Material

ABS (flame-retardant)

Warranty

1 Year

Safety & Compliance

  • California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Restore your UPS backup power with confidence- order your RBC2 compatible battery cartridge today!

APC® and RBC® are registered trademarks of Schneider Electric IT Corporation. This product is not affiliated with, endorsed by, or authorized by Schneider Electric IT Corporation
