SPS (SG-RBC22PHR) APCRBC22PHR High Rate Replacement Battery for SU700R2BX120-TU
SPS (SG-RBC22PHR) APCRBC22PHR High Rate Replacement Battery for SU700R2BX120-TU
(No reviews yet)
Write a Review
SPS
- SKU:
- SGRBC22PHR_1_1_S1003
- UPC:
- 681827858199
- Condition:
- New
- Availability:
- Usually Ships in 24 hours
- Weight:
- 6.00 LBS
- Shipping:
- Free Shipping
- Volt:
- 12 V
- Capacity:
- 9 Ah
- LENGTH:
- 5.94 IN
- WIDTH:
- 2.56 IN
- HEIGHT:
- 3.74 IN
- Weight:
- 6 LBS PER UNIT
- TERMINAL:
- T2
MSRP:
$170.00
$85.00
(You save
$85.00
)

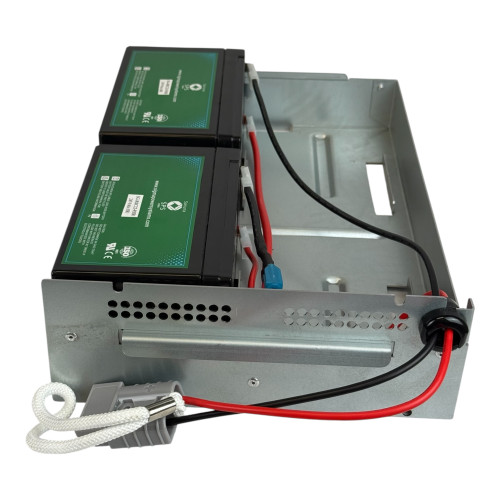

SPS Brand SG-APCRBC22PHR High Rate Replacement Battery for APC RBC22 Smart-UPS - Compatible with SU700R2BX120-TU
Product Title
SPS Brand APC RBC22PHR High Rate Replacement Battery - 2-Pack 12V 9Ah High Rate Sealed Lead Acid (SLA) Batteries for APC Smart-UPS (SU700R2BX120-TU, T2 Terminals, Maximum Output, Direct Replacement)
Key Features
- High Rate, High Capacity Output: Includes two 12V 9Ah High Rate sealed lead acid (SLA) batteries (RG129-36HR), connected in series for 24V 9Ah totalâengineered for rapid discharge and maximum power delivery in demanding APC Smart-UPS applications.
- Voltage Matched: Built with voltage matched batteries from the same lot for longer life.
- Plug & Play Installation: Pre-assembled for immediate installationâsimply swap your old RBC22PHR cartridge for instant, reliable backup. No assembly or special tools required.
- Premium Quality & Safety: Features advanced valve regulated, maintenance-free SLA technology, high-rate discharge capability (up to 135A for 5 seconds), shock-resistant ABS casing (UL94-HB), and is U.L. Recognized and CE Certified for safety and reliability.
- Guaranteed Compatibility: Designed to meet or exceed OEM specifications, ensuring 100% compatibility with original APC RBC22PHR battery cartridges.
- Device Specific Compatibility: Optimized for APC model: SU700R2BX120-TU.
- 1-Year Warranty: Backed by SPS Brandâs limited warranty and U.S.-based customer support for peace of mind.
Product Description
Upgrade your APC Smart-UPS with the SPS Brand APC RBC22PHR High Rate Replacement Battery Cartridge, engineered for maximum output, reliability, and extended runtime. This kit includes two 12V 9Ah High Rate sealed lead acid batteries (wired in series for 24V 9Ah total), providing robust backup power for critical equipment in home, office, or IT environments.
The RG129-36HR batteries deliver high-rate performance, supporting up to 36W at a 15-minute rate and 135A maximum discharge for 5 seconds. Advanced VRLA technology ensures maintenance-free operation and a robust design life. Each battery is factory fresh, voltage-matched, and top-charged for optimal performance right out of the box.
Key Specifications (Per Battery, RG129-36HR)
| Feature | Specification |
|---|---|
| Battery Type | High Rate Sealed Lead Acid (SLA), VRLA |
| Voltage | 12V |
| Capacity | 36W @ 15min-rate to 1.67V/cell at 25°C |
| Nominal Capacity | 9.0Ah (20hr rate) |
| Weight | Approx. 2.60 kg (±5%) |
| Dimensions (mm) | 151 (L) x 65 (W) x 94 (H) |
| Max Discharge Current | 135A (5 seconds) |
| Internal Resistance | ~18 mΩ |
| Float Charge Voltage | 13.5-13.8V |
| Cycle Use Voltage | 14.4-15.0V |
| Max Charging Current | 2.7A |
| Terminal Type | T2 |
| Casing | ABS (UL94-HB) |
| Operating Temp Range | Discharge: -15°C~50°C; Charge: -15°C~40°C |
| Self-Discharge | 91% capacity after 3 months at 25°C |
| Design Life | 3-5 years at 25°C |
| Certifications | U.L. Recognized, CE Certified, ISO 9001 |
Total Output (Series)
24V 9Ah
SPS RBC22 vs. RBC22P vs. RBC22PHR Comparison
| Feature | SPS RBC22 (Standard) | SPS RBC22P (High Capacity) | SPS RBC22PHR (High Rate) |
|---|---|---|---|
| Battery Type | 2 x 12V 7Ah SLA | 2 x 12V 9Ah SLA | 2 x 12V 9Ah High Rate SLA |
| Total Output | 24V 7Ah | 24V 9Ah | 24V 9Ah (High Rate) |
| High Rate Discharge | Standard | Standard | 135A (5 sec), 36W @ 15min |
| Runtime | Standard | Up to 28% longer | Up to 28% longer + high output |
| Weight (approx.) | ~10 lbs | ~12 lbs | ~12 lbs |
| Dimensions (each) | 151 x 65 x 94 mm | 151 x 65 x 94 mm | 151 x 65 x 94 mm |
| Terminal Type | T2 | T2 | T2 |
| Maintenance | Maintenance-free | Maintenance-free | Maintenance-free |
| Certifications | UL, CE | UL, CE | UL, CE |
Key Differences
- RBC22: Standard 7Ah batteries for general backup (24V 7Ah total).
- RBC22P: Upgraded to 9Ah for longer runtime (24V 9Ah total).
- RBC22PHR: Uses 9Ah High Rate batteries, delivering both longer runtime and superior high-current output (24V 9Ah total, high rate).
Why Choose SPS Brand APC RBC22PHR?
- Maximum Output: High Rate batteries ensure your UPS delivers peak power when it matters most.
- Extended Runtime: 9Ah capacity per battery means longer backup during outages.
- Maintenance-Free: VRLA design eliminates the need for regular maintenance.
- Trusted Quality: Built to meet or exceed original APC specifications for safety and reliability.
Important Notes
- Please confirm compatibility with your UPS model before purchase.
- Batteries are heavy; handle with care.
